桥楼值班报警系统
|
 |
To provide shipowners with compliance to the latest carriage requirements for Bridge Navigation Watch Alarm Systems (BNWAS), Powermaster marine announces the release of it's latest Bridgewatchkeeper product. Offering full supply and installation services for newbuild and retrofit projects, Powermaster marine will ensure full compliance with the new IMO regulations.
BNWAS is required to be installed on all new vessels with the keel laid on or after July 1st 2011. All existing vessels will be required to retrofit the system at the first survey after the dates outlined in the regulations; all exisiting passenger vessels and cargo vessels over 3000GRT by July 1st 2012, existing cargo vessels above 500GRT to 3000GRT by July 1st 2013, and all existing cargo vessels above 150GRT to 500GRT by July 1st 2014.
Shipowners should be aware that the first survey may not happen at the same time as a dry docking and that as such owners should note thatconsiderable work might be required for retrofitting a BNWAS which could take a vessel out of service.
As such consideration should be given to fitting the system at their vessels' next dry docking ahead of the mandatory implementation dates and not wait for annual surveys within the compliance window.
Powermaster marine has the product and the manpower skills to implement the installations as quickly and smoothly as possible.
技术参数 主电源： 220VAC,50Hz/60Hz
|
主要设计标准 MSC.128(75)-Performance standards for a bridge navigational watch alarm system(BNWAS) |
|
系统特点 供货范围: |

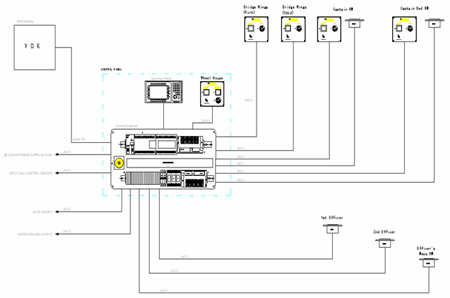

系统组成 报警控制板 控制接线箱（可以安装在控制台中） 声音报警单元（蜂鸣器） 报警指示板（盒） 复位控制板（盒） 其它组件 |
|
工作模式 自动模式（船舶航行控制系统运行时自动控制该系统处于持续工作状态） |
系统故障报警 系统具有完备的自检功能，系统故障时，能输出故障报警信号。 |
|
复位功能 复位功能只能设置在桥楼能够正常监视到区域 |
紧急呼叫 值班人员能在桥楼启动紧急呼叫按钮触发二及报警，并按正常时序触发三级报警。 |
|
通信接口 系统提供满足to IEC 61162-1 标准要求的通信接口 |
安全 系统工作模式转换及系统参数修改功能受密码保护，防止非被授权人员进行操作。 |
|
报警及指示功能 灯光提示 （系统启动后，报警计时器开始计时，计时时间超过设定时间（3~12分钟可调）后，系统输出灯光提示信号） |
||
