Technical Specifications

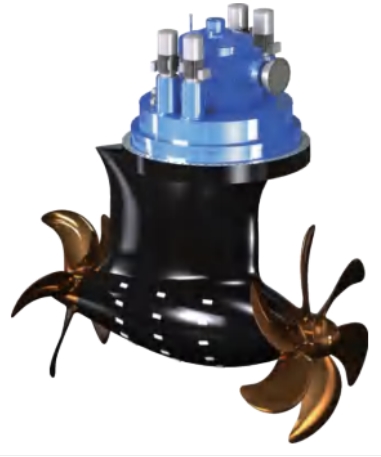

Propeller Type: Contra-rotating twin propellers
Input Power Range: 2,000–12,000 kW
Mechanical Transmission: Z-drive configuration
Prime Mover: Electric motor
Dynamic Positioning Compliance: Meets DP1 / DP2 / DP3 standards
Lubrication & Cooling: Jet-type system
Mechanical Transmission Efficiency: 96–98%
Steering Mechanism: Electric drive
Installation Options: Modular or integrated installation
Product Features
Advantages of Contra-Rotating Twin Propellers:
The aft propeller effectively recovers the rotational energy of the forward propeller's wake, improving overall efficiency while reducing vibration and noise.
Proven Performance:
Sea trials have confirmed cavitation-free operation under free-sailing conditions, with significant reductions in noise and vibration. Compared with conventional single-propeller azimuth thrusters, efficiency is increased by 20–25%.
|
代码 |
BP-25C |
BP-35C |
BP-45C |
BP-50C |
BP-60C |
BP-70C |
BP-90C |
BP-120C |
BP-10C0 |
|
功率 |
2000kW |
3000kW |
4000 kW |
4500 kW |
5100 kW |
6200 kW |
7700 kW |
9000 kW |
12000 kW |
|
最大桨径 |
2800mm |
3200 mm |
3500 mm |
3600 mm |
3800 mm |
4000 mm |
4400 mm |
4600 mm |
4800 mm |
|
重量 |
~25 000 kg |
~35 000 kg |
~46 000 kg |
~54 000 kg |
~70 000 kg |
~95000 kg |
~126000 kg |
~165000 kg |
~250000 kg |
